PT-130 Bottom Clevis Bracket Kit (complete)
Part #CMC-51300X1-6018X4-6019X4-6206X4-6009X1-51392X1
Shop at Pro-Parts-Inc.com →
View and order this part on pro-parts-inc.com.
See it on the exploded diagramThis part on the CMC PT-130 Hydraulic Tilt & Trim parts breakdown →

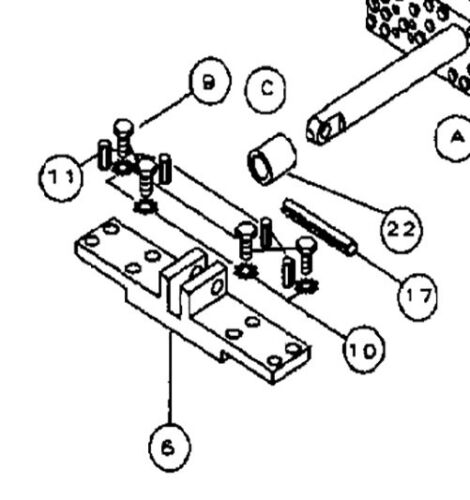

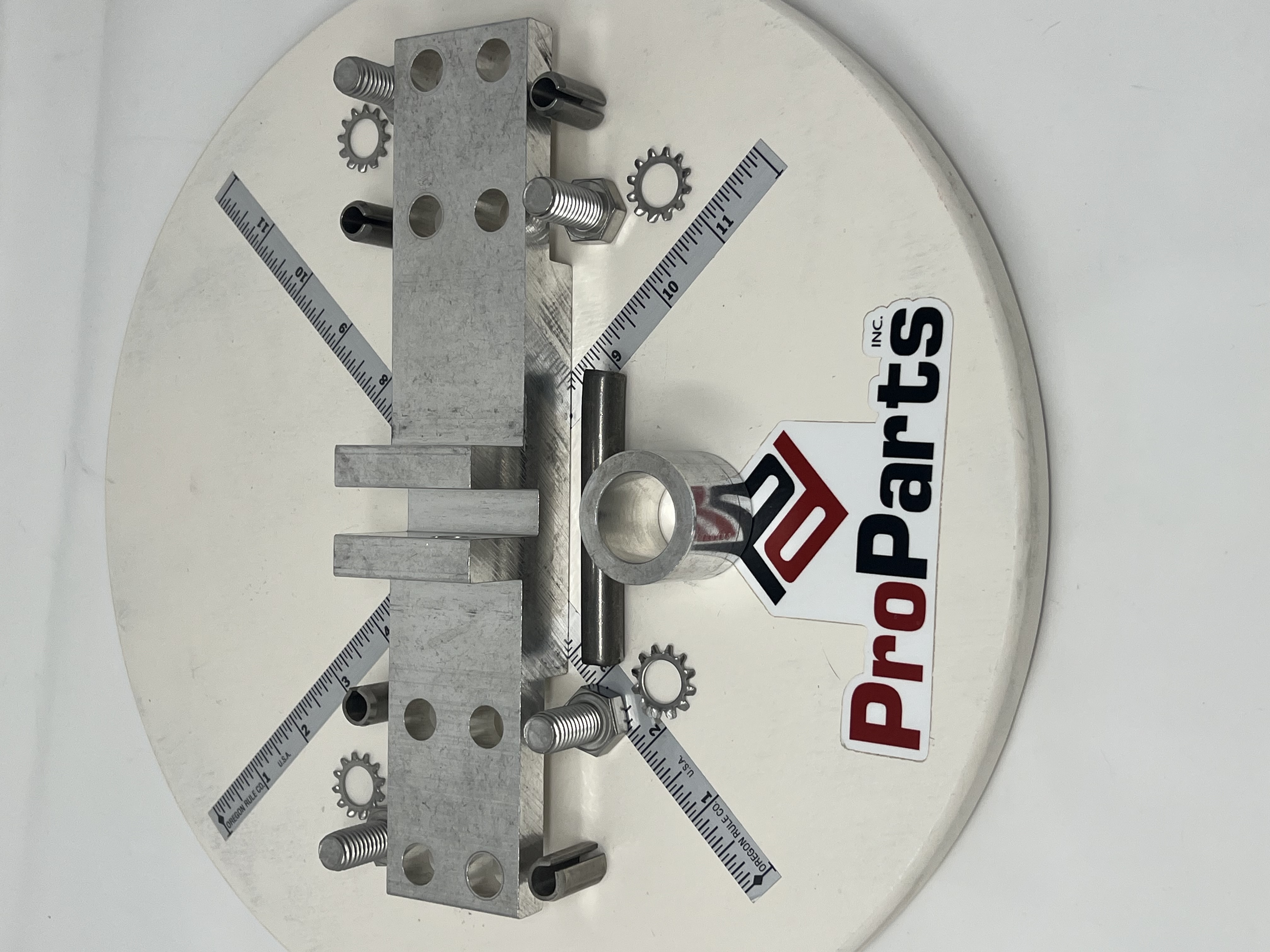

CMC PT-130 Bottom Clevis Bracket Repair kit. Includes everything needed to replace the bottom clevis bracket on a PT-130 Kit includes: CMC 51300 Bottom Clevis Bracket Qty. 1 CMC 6018 1/2-13 X 1" Hex head cap screw 18-8 S.S. Qty. 4 CMC 6019 1/2" External Tooth Lockwasher 410 S.S. Qty. 4 CMC 6206 1/2" X 1" Spring Pin S.S. Qty 4 CMC 6009 1/2" X 3 1/2" Spring Pin S.S. Qty. 1 CMC 51392 Spacer Qty. 1 See image below for exploded view of bottom clevis bracket.
Need help finding the right part? Call (956) 462-0947.
